Gnutti KFD-G200 Centering Hydraulic Clamping Vice Stationary Power Chuck 3537 daN For CNC/ Transfer Machine

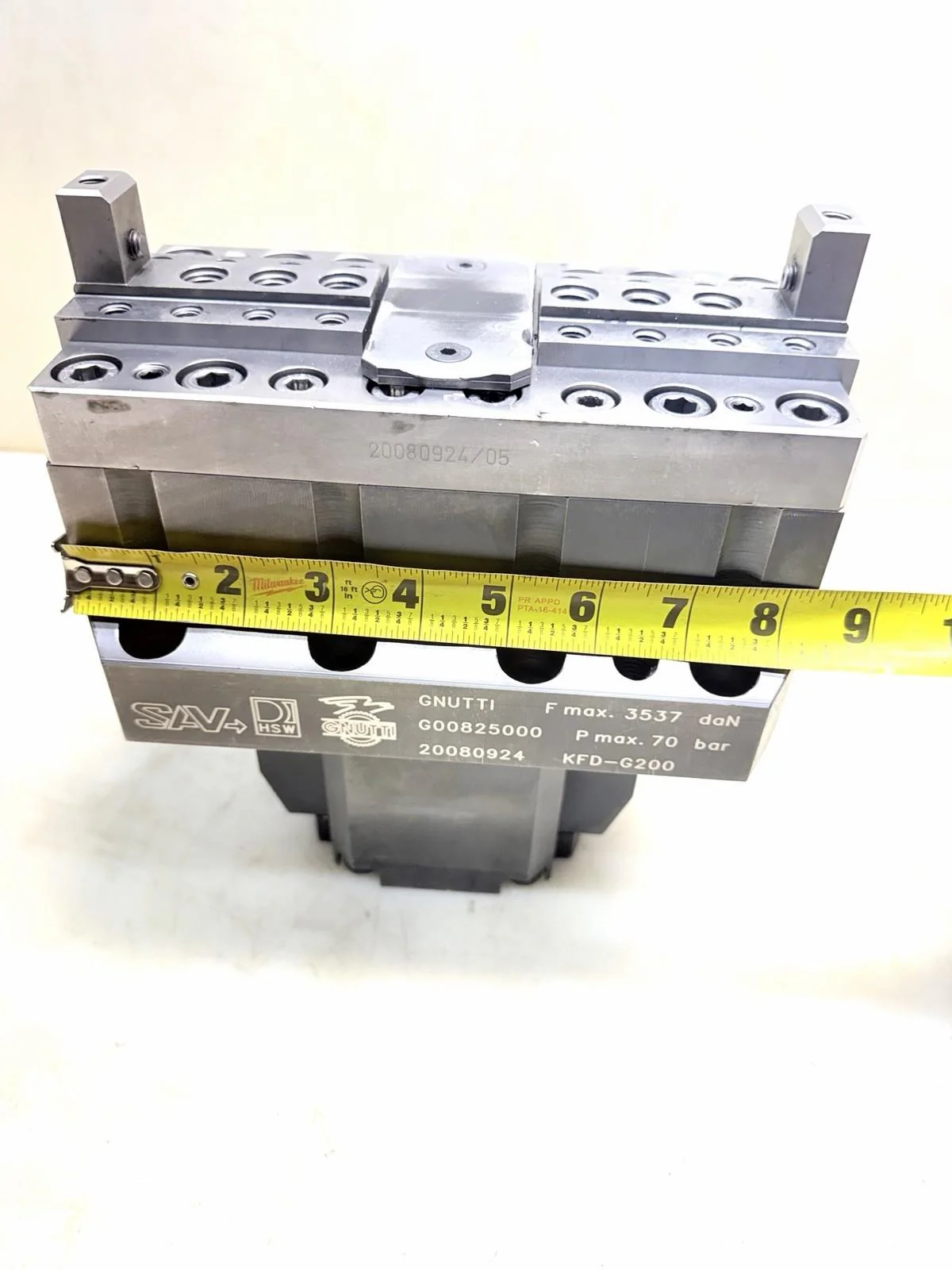

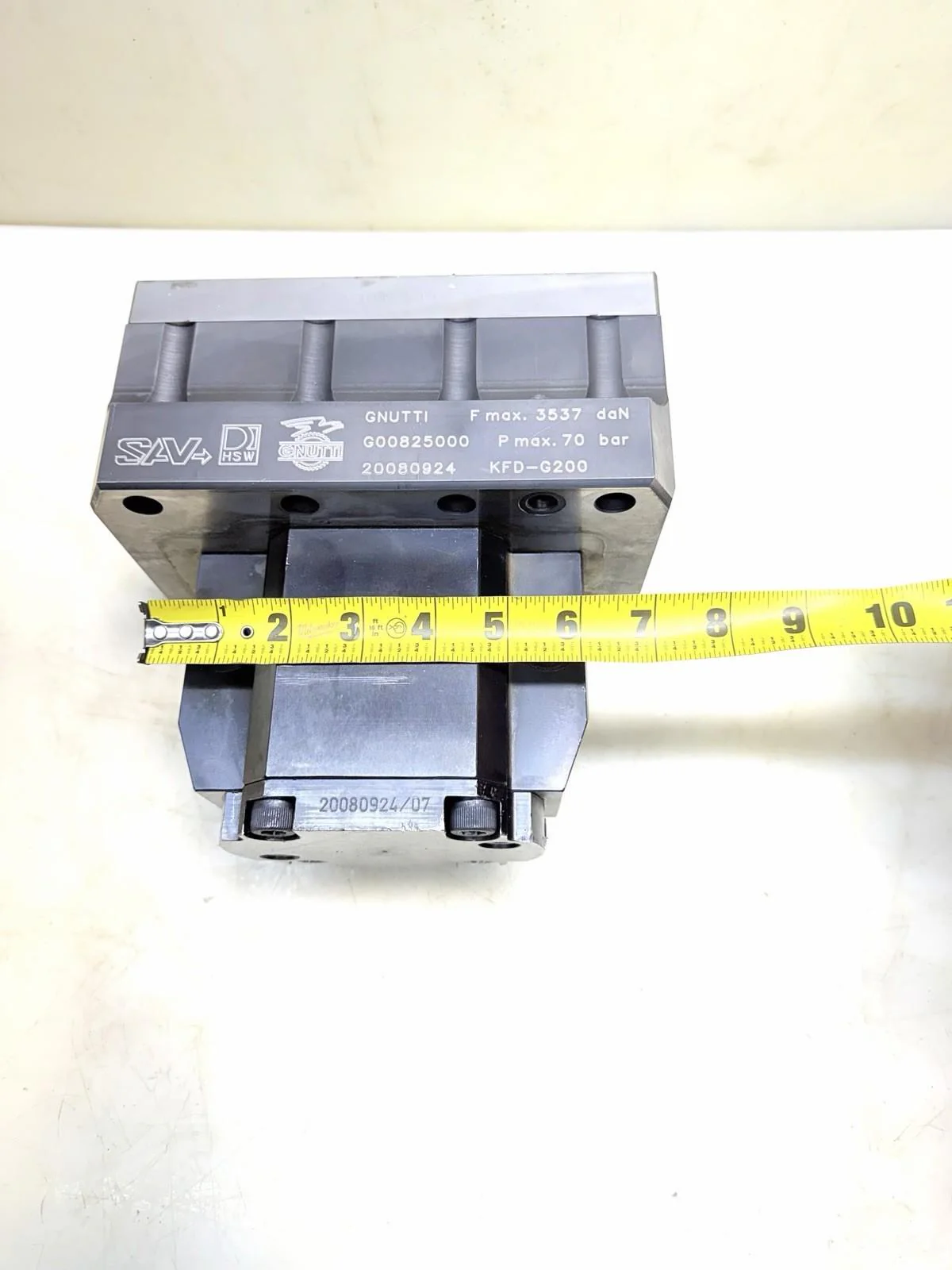

Key details from the markings:

• F max. 3537 daN — This is the maximum clamping force (about 35.37 kN or roughly 3.6 metric tons / ~7950 lbs of force).

• P max. 70 bar — Maximum hydraulic operating pressure (70 bar ≈ 1015 psi).

• It features multiple clamping points or jaws (the black tapered/hydraulic actuators visible on the bottom are likely the pistons or plungers for applying force).

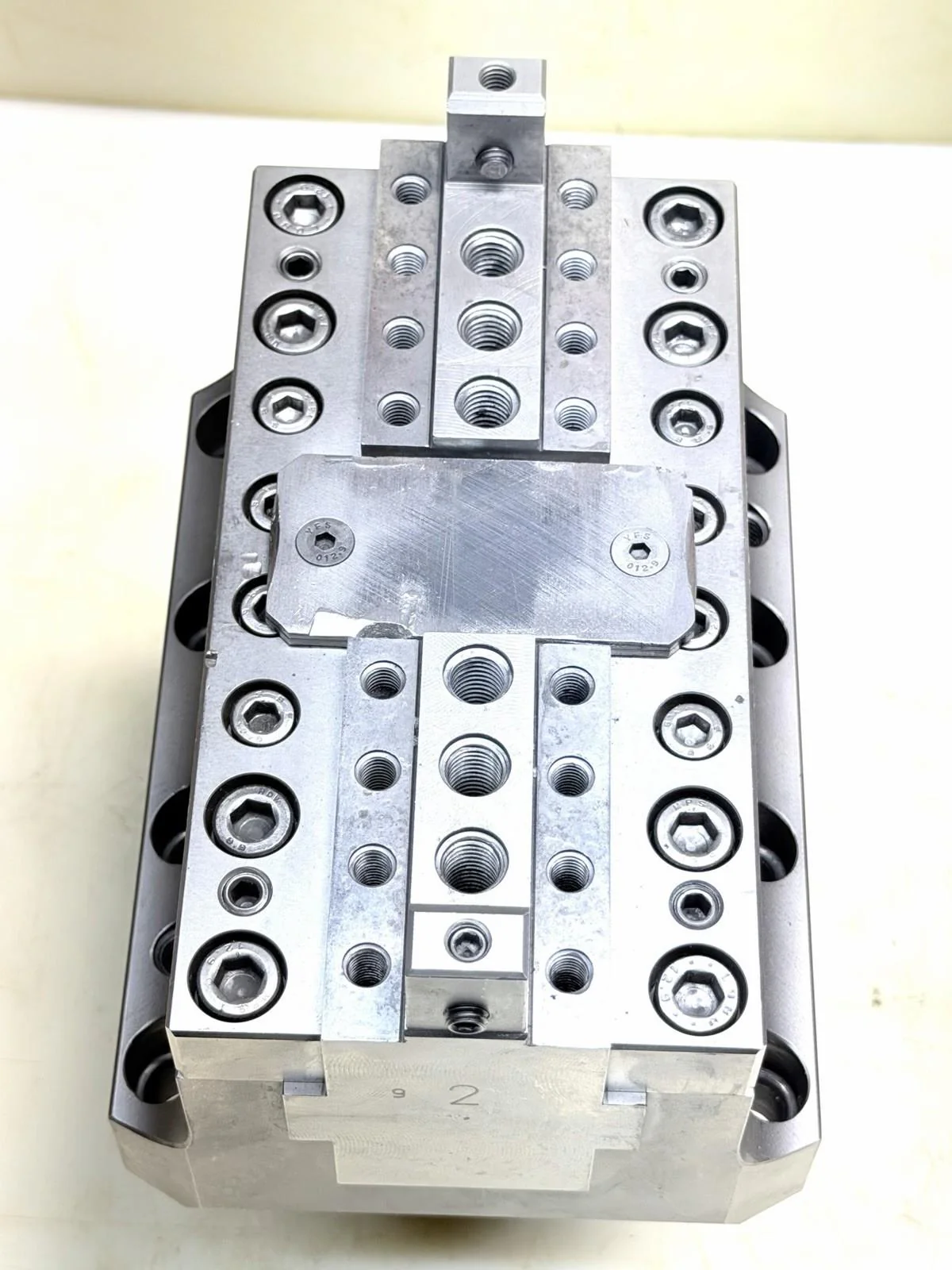

• The top has a modular fixture plate with threaded holes (M likely for mounting workpieces, tools, or modular components).

• Markings like SAV → DI ↔ HSW and GNUTTI refer to branding/partnerships or series (SAV, DI, HSW may indicate specific lines or collaborations in their clamping tech).

These are commonly used in:

• Transfer machines (Gnutti specializes in multispindle/rotary transfer machines for high-volume production, e.g., automotive or fittings parts).

• CNC machining centers.

• Fixturing for milling, drilling, or other operations where strong, reliable, repeatable clamping of workpieces is needed under high forces/pressures.
